Scribing Marking Machine

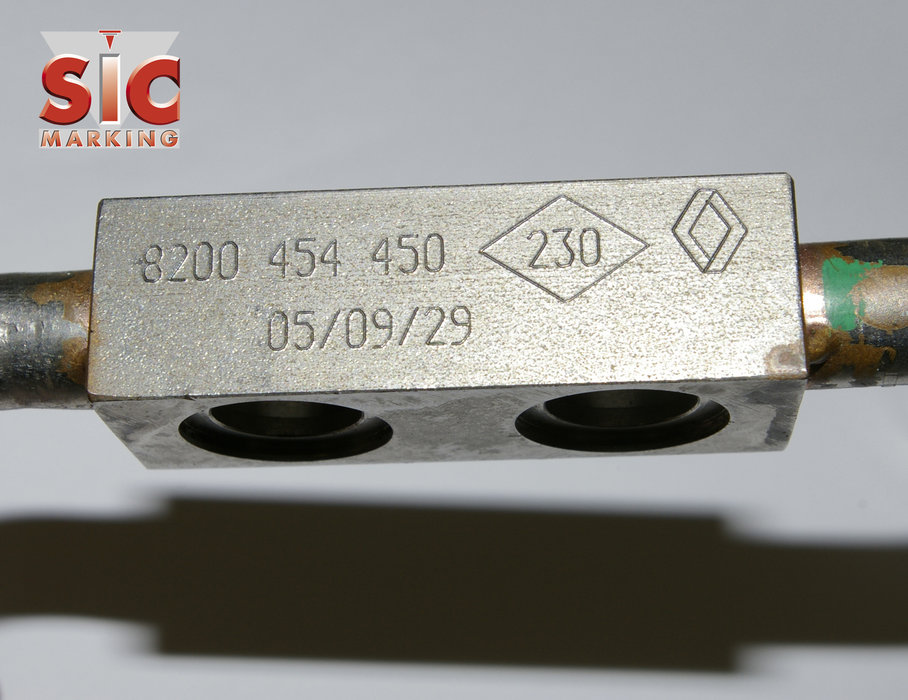

Scribing is a marking process whereby the mark (text, logo, codes) is produced by a carbide or diamond tip that penetrates and indents the surface. This produces a deep groove that forms continuous lines across round, concave, flat, or arched surfaces, and on almost any material.

Also called "drop and drag" or "scratch marking," scribe marking machines are an ideal choice for applications where noise level limitations are imposed. If dot peen markers are considered too noisy when used on steel pipe, for example, a pneumatic scribe machine might be preferred. SIC Marking's scribing technology guarantees a high quality mark and is ideal for requirements that include Optical Character Recognition (OCR).

Applications

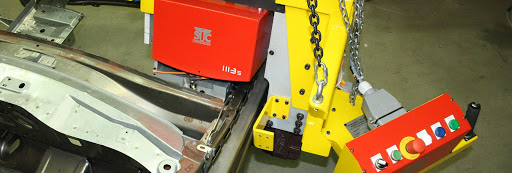

From VIN marking systems to automatic plate feeder marking stations, marking applications in the automotive industry are numerous. Scribing marking heads can be mounted on columns, integrated in workstations, or mounted on a robot. Whatever the application, SIC Marking can engineer a solution.

Scribing has also been the technology of choice in, inter alia, the metal working, oil & gas, agricultural, electronic, transport, and construction industries. Such machines can be run as a table top workstation (custom solution), but are more commonly integrated into production lines (see the integrated range).

Notable Features Include:

  • The possibility of deep permanent marking (total customization!)
  • Near inaudible marking
  • High speed performance
  • Long-term reliability
  • High readability
  • Powered requirements include electricity and air

PDF List

Download Video Title

E10 i63s

E10 i124s
